DigiAlti 3
digital skydiving altimeter
digital skydiving altimeter
Coming soon!

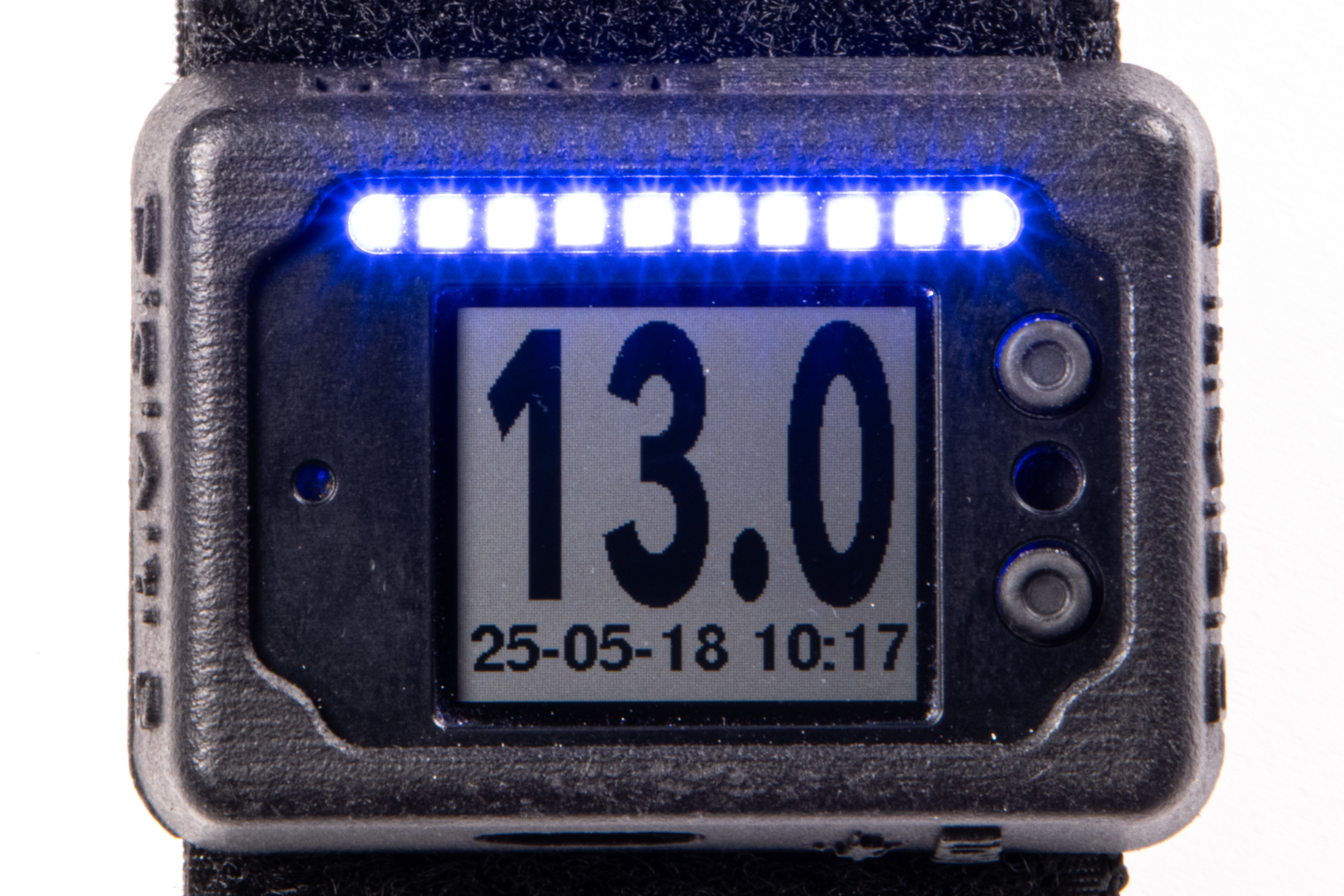

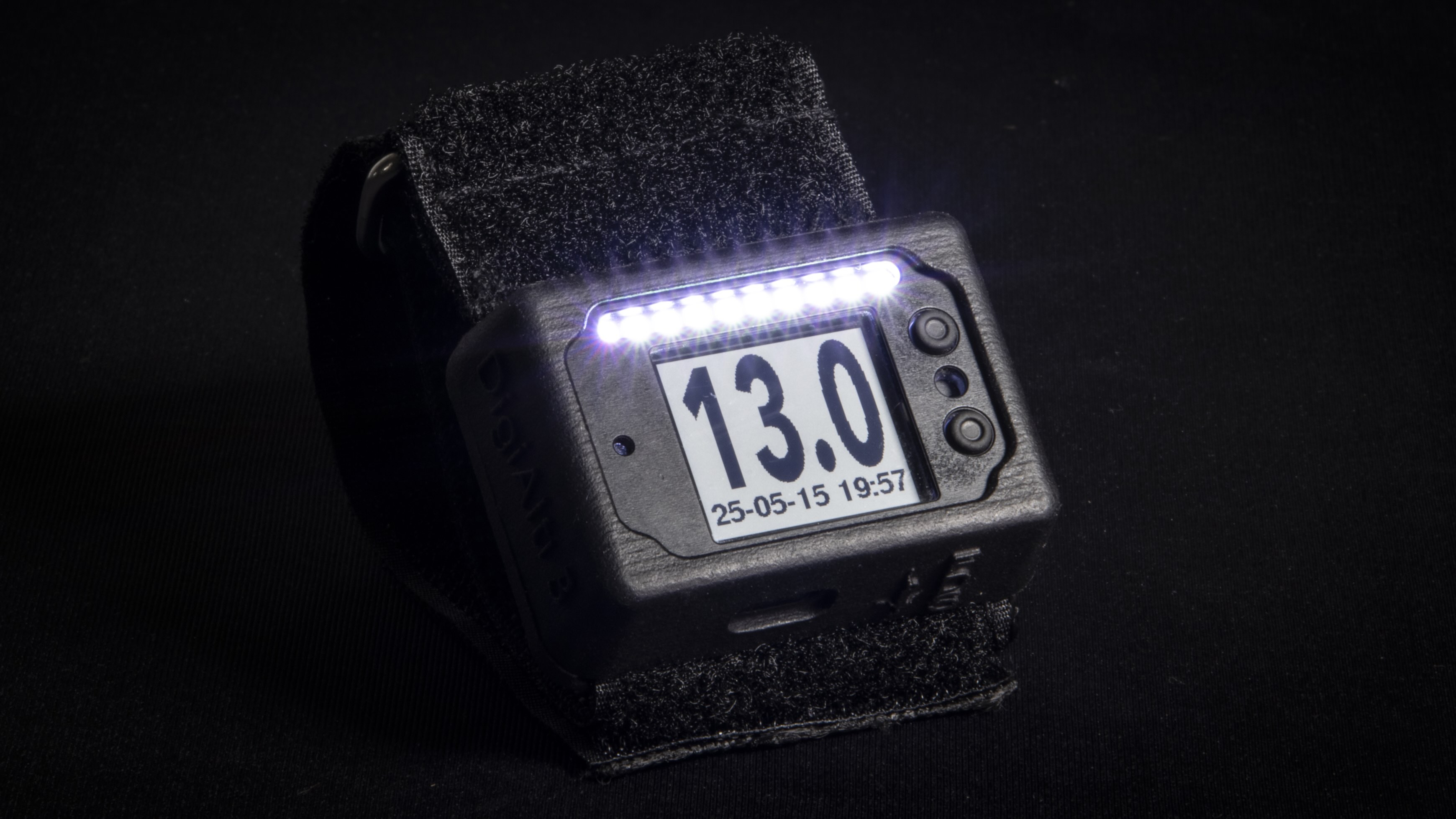

DigiAlti 3 (US Patent No. 10,267,630 B2) is an altimeter like no other.
It combines the powerful capabilities of ColorAlti 3
in a LightBar with a high resolution Sharp Memory LCD for numeric altitude display.
The result is one of the most powerful altimeters ever created for skydiving altitude awareness.
Key Features
- Robust hardcoat anodized aluminum case (MIL-A-8625 Type III)
- Durable nylon hand mount
- Shock resistant and waterproof (3 ft for 1 hour)
- High-resolution Sharp Memory LCD
- 2 mm Gorilla Glass on LCD, protected under warranty for two years
- 10-LED LightBar with all capabilities of ColorAlti 3’s light alerts and effects
- 33 different light alerts and effects (US Patent No. 10,267,630 B2)
- Optional customizable info bar at bottom provides additional info during all phases of a skydive
- Logs your jumps for syncing to FDS Logbook
- Free Bluetooth® iOS/Android app for setting and syncing logged data to FDS Logbook
- Firmware updates as easy as dragging a file onto a USB drive
- Store and name up to five presets
- Always on
- Remembers your settings and data when the battery runs out
- Adjusts automatically to local elevation
- Freefall threshold can be customized
- Freefall alerts can be disabled below a certain altitude
- LED brightness can be adjusted
- Landing zone offsets can be made on each preset
- Tested to function accurately up to 30,000 feet
- Rechargeable lithium polymer battery (USB cable included)
- Long battery life (6 weeks, or 3 months in Deep Sleep Mode)
Technical Specifications
- Dimensions with standard mount: 58.7 × 42.4 × 20.6 mm (2.31 × 1.67 × 0.81 in)
- Dimensions without mount: 50.1 × 34.2 × 16.0 mm (1.97 × 1.35 × 0.63 in)
- Weight with standard velcro mount: 71.4 g (2.52 oz)
- Weight without mount: 35.5 g (1.25 oz)
- Anodizing type: MIL-A-8625 Type III (hardcoat)
- Battery: rechargeable lithium polymer 3.7V 150 mAh
- LCD type: Sharp Memory LCD
- LCD resolution: 144 x 168
- LCD viewing area: 20.88 x 24.36 mm (0.82 x 0.96 in)
- Individual LED peak brightness: 1,000 mcd
- Color depth: 16-bit (65,536 colors)
- Operating temperature range: −40° to 65° C (−40° to 150° F)
- Operating altitude: −500 to 9,000 m MSL (−1,640 to 29,528 ft)
- Altitude resolution of pressure sensor: 0.13 m (5.1 in)
- Sample rate/LightBar frame rate: 25 Hz
- Permissible charging temperature range: 0° to 50° C (32° to 122° F)
- USB connector: USB-C
- Wireless technology: Bluetooth® Low Energy
- Bluetooth LE wireless range: circa 10 m (32.8 ft)
